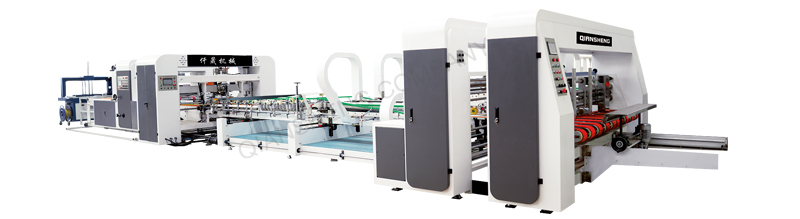

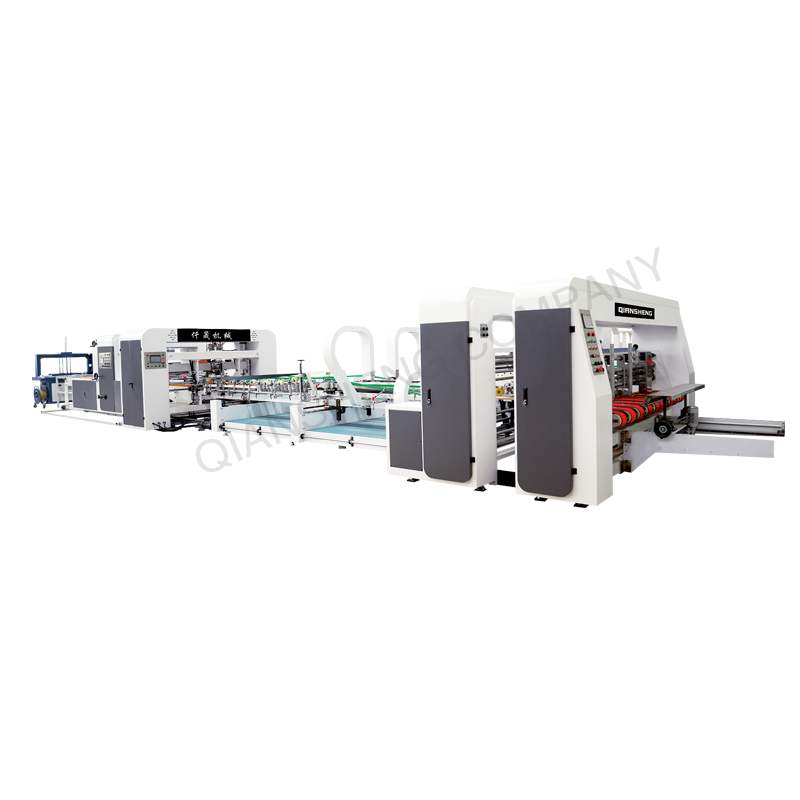

Intelligent automatic adhesive nail machine

Function and characteristic：

QS- Intelligent automatic nailing machine is composed of 5 parts: vacuum paper feeding

section, line pressing section, gluing folding section, nailing box section and counting stacking output section.

All motors are made of Taiwan Shengbang motors except frequency conversion motors. Frequency conversion speed regulation, standard PLC touch screen control (double PLC, double touch screen), the whole machine electric adjustment, only need to input three data (length, width, height dimensions) on the touch screen, the machine automatically adjusted to the position. The operation is simple and reliable, the nailing part and the gluing part can be controlled separately, the highest speed of gluing box is 180m/min, and the average speed of gluing box is 150m/min;Nailing box 4 nailing 70 pieces/min. High speed energy saving and labor cost saving.

Inquiry Contact us

Product Introduction

Functions and features:

QS-intelligent automatic nailing machine is composed of 5 parts: vacuum paper feeding part, wire pressing part, glue folding part, nail box part and counting accumulation output part. All motors are made of Taiwan Shengbang motors, except variable frequency motors. Frequency control, standard PLC touch screen control (double PLC, double touch screen), the whole machine electric adjustment, just input three data (length, width, height size) on the touch screen, the machine automatically adjusts in place. The operation is simple and reliable, the nail box part and the adhesive box part can be controlled separately, the maximum speed of the adhesive box is 180 meters/min, and the average adhesive box speed is 150 meters/min. Nail box 4 nails 70 pieces/min. High speed energy saving, save labor costs。
