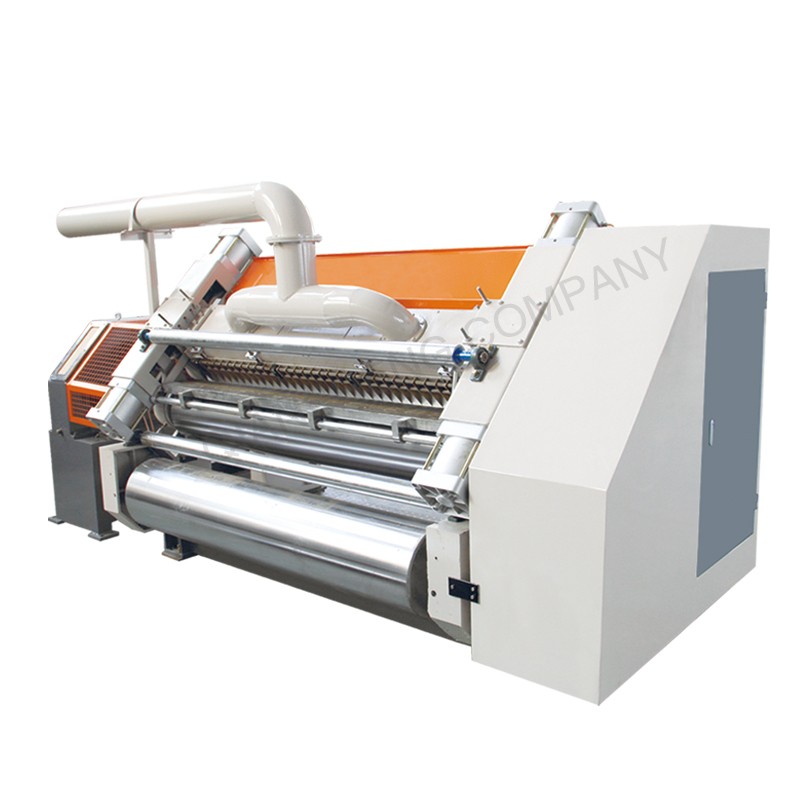

280CR Figerless type single facer

◆ Corrugated roller is made of special alloy steel of 48CrMoalloy steel with grinding process and hardened withhardness of HRC58° - 60°.

◆ Oil lubrication type gear box, low noise and gimbaltransmission, also seperate power. Main motor isfrequency conversion control (optional).

◆ Vacuum suction system provides perfect flute shape evenat high speed, blast volume controller is equipped.

◆ Bearings of corrugated roller and pressure roller arelubricated by high-temperature lubricating grease.

◆ Surface of gluing roller are treated by special meshsnicked and chromeplated. Automatic and cyclic supplyglue for the glue unit.

Inquiry Contact us

Product Introduction

◆ Corrugated roller is made of 48CrMo alloy steel, the surface hardness reaches HRC58° -60 ° after heat treatment, and the surface is ground and chrome plated.

◆ Independent drive reducer with oil lubrication, low noise, three-axis universal joint transmission, isolated power source, main motor frequency control (optional).

◆ Vacuum adsorption guide paper, with air volume adjustment device, so that the corrugated type at high speed to maintain stability.

◆ Tile roller, press roller bearing with high temperature grease lubrication.

◆ The surface of the roller is marked with mesh and chrome plating; Gluing section automatically circulates gluing.

◆ Slurry separator, manual or electric.

◆ The gluing part stops and can operate independently or not.
