◆ Servo motor independent drive, no gear backlash wear, long life, high precision.

◆ Vacuum adsorption leading edge paper feed, frequency conversion control air volume, stable and fine paper feed. Right.

◆ Extended paper feeding system, according to the length of the board, determine the size of the paper feeding stroke, improve the accuracy of the paper feeding.

◆ Non-pressure feeding system, avoid the cardboard transfer process is destroyed, to ensure the compressive strength of the original cardboard.

◆ The whole machine automatic zeroing system, store common orders, quick order change, easy operation.

◆ Widened dust removal device, remove electrostatic brush, can remove the paper dust on the surface of cardboard, improve the printing quality.

◆ The left and right baffles and back plates are controlled by computer, fine. Close guide mechanism, smooth displacement, with side shot function.

◆ Full vacuum adsorption, with ceramic paper feed wheel transfer system.

◆ Frequency conversion to adjust the adsorption wind, can also automatically adjust the switch of the damper according to the length of the cardboard.

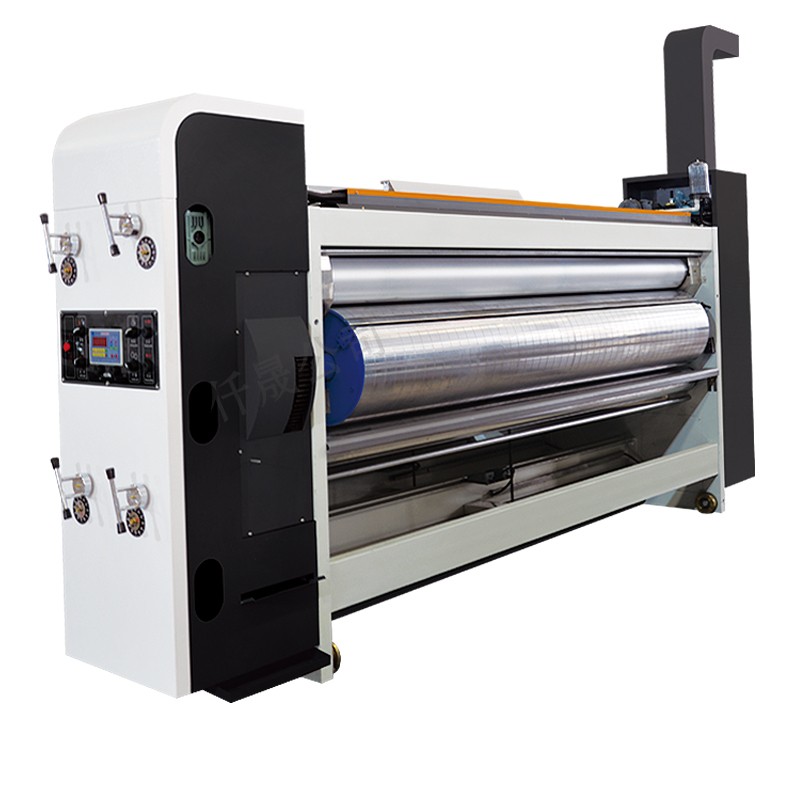

◆ Closed scraper with ceramic roller, to achieve high dot precision printing, scraper force uniform, simple adjustment and maintenance.

◆ Pneumatic double diaphragm pump, fast cleaning function, ink supply, stable circulation, simple operation and maintenance.

◆ Quick change of rubber roller, mesh roller device, equipped with quick change bracket.

◆ Tilt correction roller, the tilt error can be quickly corrected on the plate roller, and the plate is convenient and fast.

◆ Erasing memory, automatic reset system.

◆ Man-machine interface and electric button adjustment dual system operation, can complete the slotted box height, phase, axial movement adjustment.

◆ Equipped with self-locking function preloading fast adjustment mechanism, to ensure the long-term accuracy between the disc and the shaft, and slow down the damage to the cardboard when pressing the line.

◆ The upper wheel of the line wrapped with polyurethane ensures that the hardness of the cardboard is not damaged.

◆ Set synchronous linkage electric axial movement, so that the upper and lower wire wheel, upper and lower slotted cutter, guide wheel synchronous adjustment; Self-moistening wear-resistant guide mechanism ensures long-term correct displacement and improves durability.

◆ Wire wheel shaft, slotted wheel shaft selection of alloy steel, surface grinding processing after hard chrome plating treatment; It is calibrated on the coarse and fine dynamic balancing equipment respectively to ensure that the balance point is found.

◆ Alloy-steel slotting knife with a blade width of 7mm.

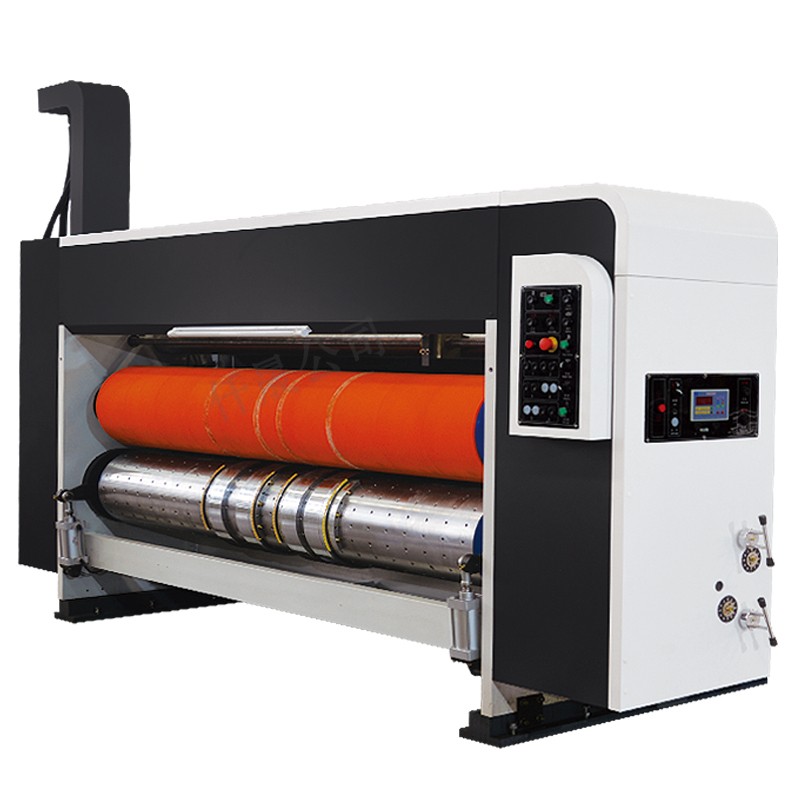

◆ Independent servo drive to avoid printing effect due to die cutting impact.

◆ Equipped with imported quick-change polyurethane rubber pad, easy to replace, with one-way clutch as linear speed compensation function, to ensure that the rubber pad wear out of the die-cut cardboard is completely consistent.

◆ In the work of die cutting rubber pad roller mechanical spiral automatic transverse movement (±20mm), so that the cut marks do not repeat, extend the service life of the rubber pad.

◆ The gap between the rubber cushion roll and the die cutting roll is controlled by pneumatic control. The rubber cushion roll drops to the working position when the paper is fed normally, and the rubber cushion roll rises automatically when the paper is stopped.

◆ Rubber pad correction mechanism, increase the use of rubber pad, reduce consumption.

◆ The bottom of the die cutting is equipped with a waste paper conveying device, which transfers the paper scraps after the die cutting to the outside of the equipment for easy cleaning.

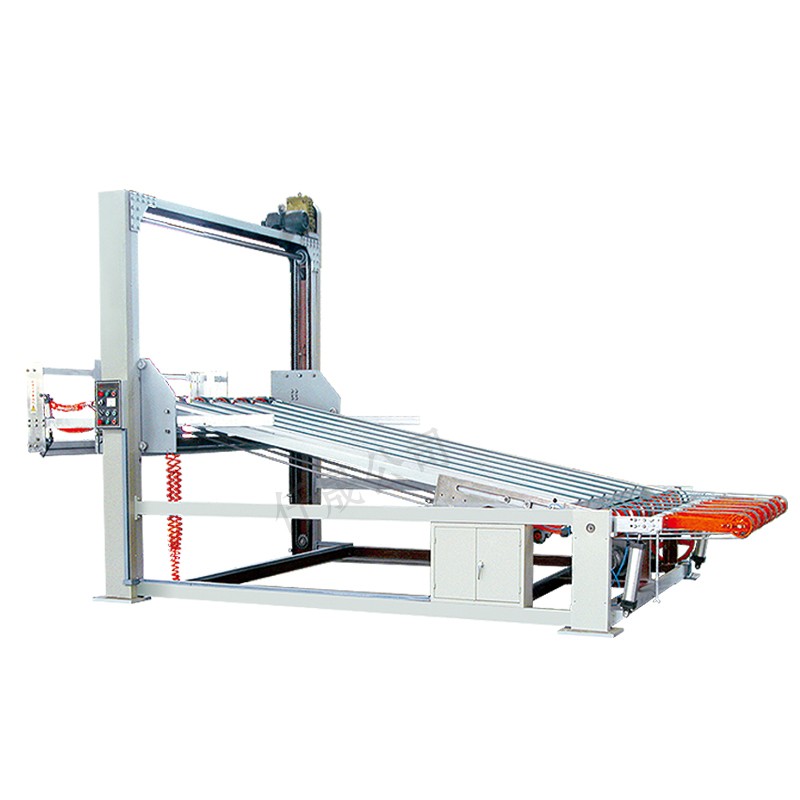

◆ The stackable height of cardboard is 1600mm.

◆ Bed lift by strong. Force chain drive. Lift motor with brake function to maintain a fixed position, will not slide.

◆ The bed is automatically raised and lowered with the stacking of cardboard. When the cardboard pile up to a predetermined height, the pneumatic paper lifting mechanism automatically opens, catches the cardboard, and the paper is full of alarm.

◆ Safety protection device is provided, forcing the bed will not suddenly slide to ensure the safety of the operator.

◆ Flat crepe climbing conveyor belt, cardboard will not slide.

◆ Stacker width is 2200mm, 3200mm.
