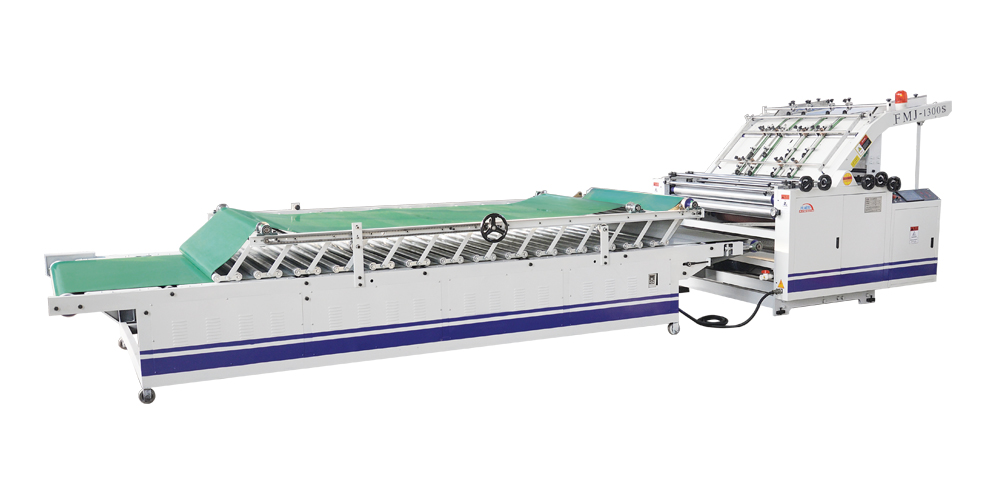

Semi-automatic servo high-speed paper laminating machine

All materials used in this machine are inspected in accordance with ISO9001 standards, ensuring high quality, good quality and strong durability. The key parts such as electrical components are all imported.

10. This machine is suitable for laminating 150-450GSM face paper with waves A, B, C, D, E, F and three-layer and five-layer cardboard (maximum thickness ≤ 8mm).

Inquiry Contact us

Product Introduction

Adhesive mounting positioning host system

performance feature

1. This section is composed of 20mm thick 45# medium plates (precisely processed), channel steel and square steel connected together.

2. This machine adopts a unique pressure spring type front gauge design, which effectively reduces the mechanical failure rate. Cooperate with intelligent control to ensure accurate fit and positioning.

3. This machine adopts variable frequency speed regulation, PLC centralized control, analog-to-digital conversion, and accurate operation control.

4. The face paper adopts an independent fish-scale conveying method, which ensures stable conveying and high speed.

5. The base paper adopts a servo-controlled suction belt automatic paper feeding mechanism, and the paper support adopts a telescopic paper support mechanism, ensuring the timeliness and accuracy of the base paper to the front gauge, and guaranteeing the precision of the machine under the adjusted operation conditions.

6. The gluing roller adopts a medium to high design, in combination with the kroller for uniform gluing, which greatly improves the uniformity of gluing, enhances the bonding strength, and reduces the production cost for customers.

7. After grinding, all roller shafts undergo dynamic balancing and hard chromium plating on the surface (except for rubber shafts), and the tight assembly process effectively enhances the stability of the machinery. 8. The fully automatic glue replenishment system can automatically replenish the lost glue during the lamination process and, in combination with glue recycling, avoid glue loss and waste.

9. All materials used in this machine are inspected in accordance with ISO9001 standards, ensuring high quality, good quality and strong durability. The key parts such as electrical components are all imported.

10. This machine is suitable for laminating 150-450GSM face paper with waves A, B, C, D, E, F and three-layer and five-layer cardboard (maximum thickness ≤ 8mm).

Pressing and curing system

performance feature

1. The main framework of this section is made by connecting channel steel, round steel, etc.

2. The main power is controlled by a frequency converter and driven by a reduction motor, which is energy-saving, highly efficient and has a low failure rate.

3. Multiple sets of floating laminating shafts are adopted to ensure that the corrugated paper will not be flattened after lamination while maintaining the flatness and straightness of the cardboard.

4. PVC anti-static conveyor belts are adopted, which are of high strength and wear resistance, ensuring smooth output of cardboard.

◇Adhesive mounting positioning host system

（1）Main motor	One set (Jiangsu Dongbang)
（2）servo motor	One set (Invt)
（3）Corrugated paper fan	One (Jiangsu Hengli)
（4）Glue application pump	One set(Mainland Joint Venture)
（5）Supply plastic boxes	One piece
（6）Corrugated paper suction belt	Group five (Tianjin Kaixing)
（7）Positioning stopper	Group Seventeen
（8）Paper feeding paper embossing wheel	Two pieces
（9）Water-washed rubber shaft	One piece
（10）Flip-type sink	One set
（11）Programmable Logic Controller PLC	Four pieces (Panasonic Japan)
（12）touch screen	Four pieces(Beijing Kunlun)
（13）uuivertor	One piece(Delta, Taiwan)
（14）cocontactor	Four pieces(Schneider, France)
（15）uuivertor	One piece(Delta, Taiwan)
（16） toggle button	Five pieces (Zhejiang Chint)
（17）switching power supply	One piece (Omron Japan)
（18） liquid level relay	One piece(Taiwan Songling)
（19）Mainframe bearing	Shanghai Renben

◇Paper feeding system

（1）Main motor	One set(Jiangsu Dongbang)
（2）Paper stage motor	One set
（3）floodlight	One piece
（4）uuivertor	One piece (Delta, Taiwan)
（5）Paper embossing wheel	One piece
（6）Paper output uli rubber wheel	Group Two (Imported Raw Materials)
（7）Paper pressing wheel	Group twenty-four (Imported Raw Materials)
（8）paper conveying belt	Article four (Tianjin Kaixing)
（9）Belt tensioning device	Eight groups
（10）Artificial ladder	Group One

◇Pressing and curing system

（1）Main motor	One set (Jiangsu Dongbang)
（2）Paper feeding belt (anti-static)	Article two (Tianjin Kaixing)
（3）Paper pressing roller	Twenty-eight pieces
（4）uuivertor	One piece (Delta, Taiwan)
（5）Paper feeding and flower pressing shaft	One piece
（6）Paper feeding shaft	Two pieces
（7）sheet laying table	One piece
（8）track	Four pieces

【1】Technical parameters of the whole machine

*model*	*1300D*	*1450D*	*1600D*
Maximum veneer size	1100mm×1300mm	1100mm×1450mm	1100mm×1600mm
Minimum veneer size	400mm×400mm	400mm×400mm	400mm×400mm
Maximum mounting speed	6,000 pieces per hour	6,000 pieces per hour	6,000 pieces per hour
Mounting accuracy	≤±1.5mm	≤±1.5mm	≤±1.5mm
power	8.5kw	8.5kw	9kw
Dimensions	10m×2.2m×2.3m	10m×2.35m×2.3m	10m×2.5m×2.3m
Weight	About4t	About4.5t	About5t

【2】Random attachment

Stopper tension spring	Seventeen pieces
ToolBox	One piece
Rubber pump diverter valve	One piece
hex key	Group One
adjustable wrench	One piece
screwdriver	One piece
Pressure oil pot	One piece
operation instruction	One copy
install screw	Several pieces (according to the company's packing list)
