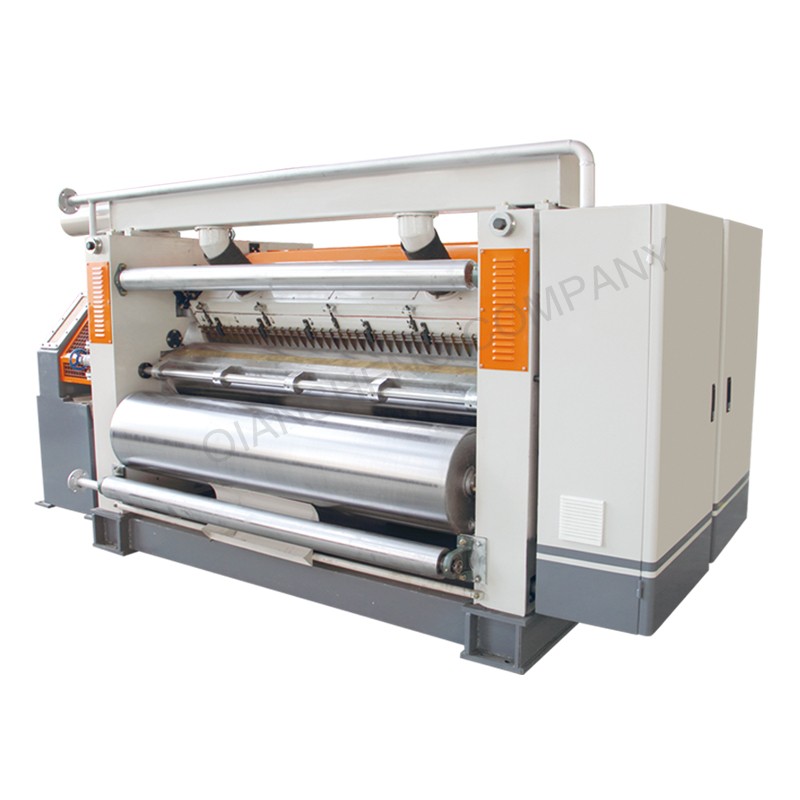

◆ 320C Design Speed: 150m/min.

◆ Effective width: 1400mm-2200mm.

◆ Corrugated roller: ф320mm/360mm.

◆ Drive reducer box with oil immersed type lubricating to reduce noise keeprunning stable. adopt gimbal transmission. separate power.(optional)Corrugating roller, pressure roller and glue roller by pneumatic adjustment.

◆ Cardboard transmit adopt vacuum suction method, with wind controlsystem. keep flute profiles stable of the lower-roller in the condition ofrunning up.

◆ Bearing of corrugated and pressure roller adopt high temperaturelubricate grease.

◆ Glue parts auto supply glue circularly.

◆ The upper-lower corrugating roller are made of 48CrMo high quality alloysteel, after heat-treatment. The hardness is above HV1200, the surfacebe dealing with tungsten carbide.

◆ The glue part surface are treated by special mesh snicked andchromeplated.

◆ Manud or electric insulation glue device.

◆ Glue part can be running independently or non-independentlywhile stopped.
