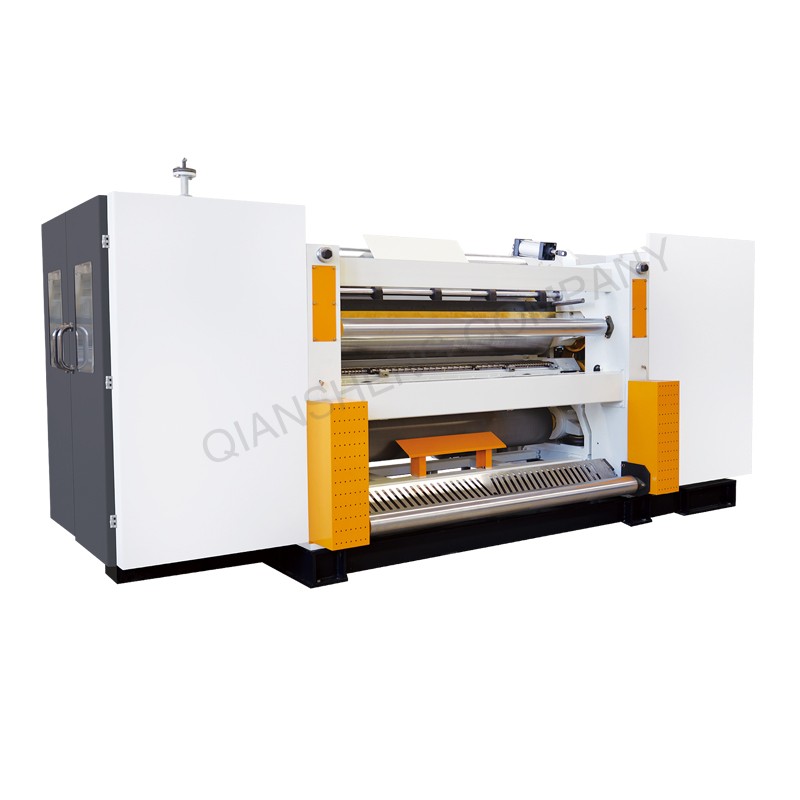

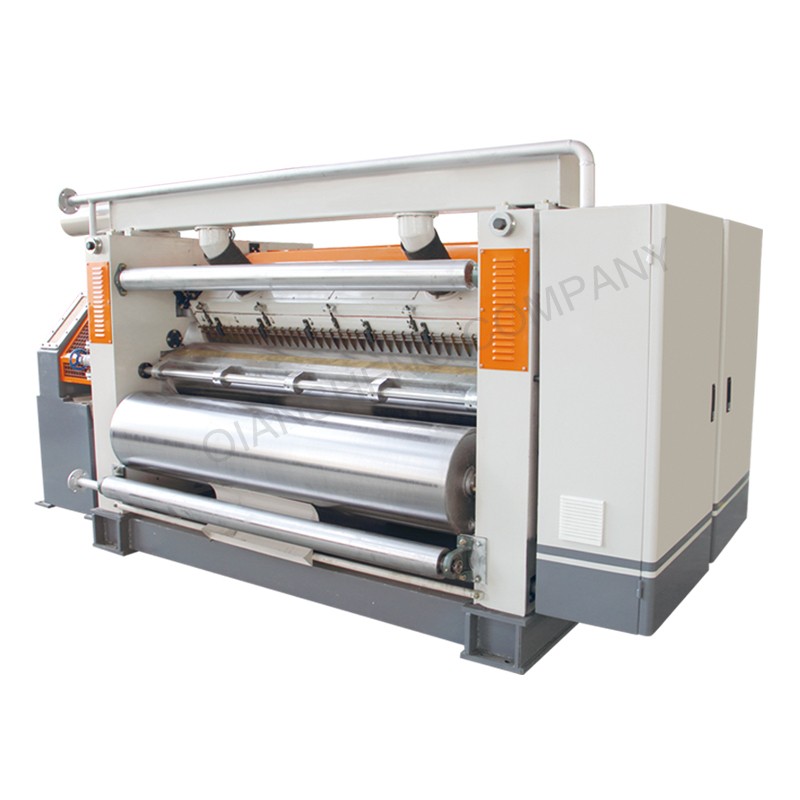

◆ 360C Design Speed: 180m/min.

◆ Effective width:1400mm-2200mm.

◆ Corrugated roller: 320mm/360mm .

◆ Drive reducer box with oil immersed type lubricating to reduce noise keeprunning stable. adopt. ◆ gimbal transmission. separate power.(optional).

◆ Corrugating roller, pressure roller and glue roller by pneumatic adjustment.

◆ Cardboard transmit adopt vacuum suction method, with wind controlsystem. keep flute profiles stable of the lower-roller in the condition of running up.

◆ Bearing of corrugated and pressure roller adopt high temperature lubricategrease.

◆ Glue parts auto supply glue circularly.

◆ The upper-lower corrugating roller are made of 48CrMo high quality alloysteel, after heat-treatment. The hardness is above HV1200, the surface bedealing with tungsten carbide.

◆ The glue part surface are treated by special mesh snicked and chromeplated.

◆ Manud or electric insulation glue device.

◆ Glue part can be running independently or non-independently while stopped.
