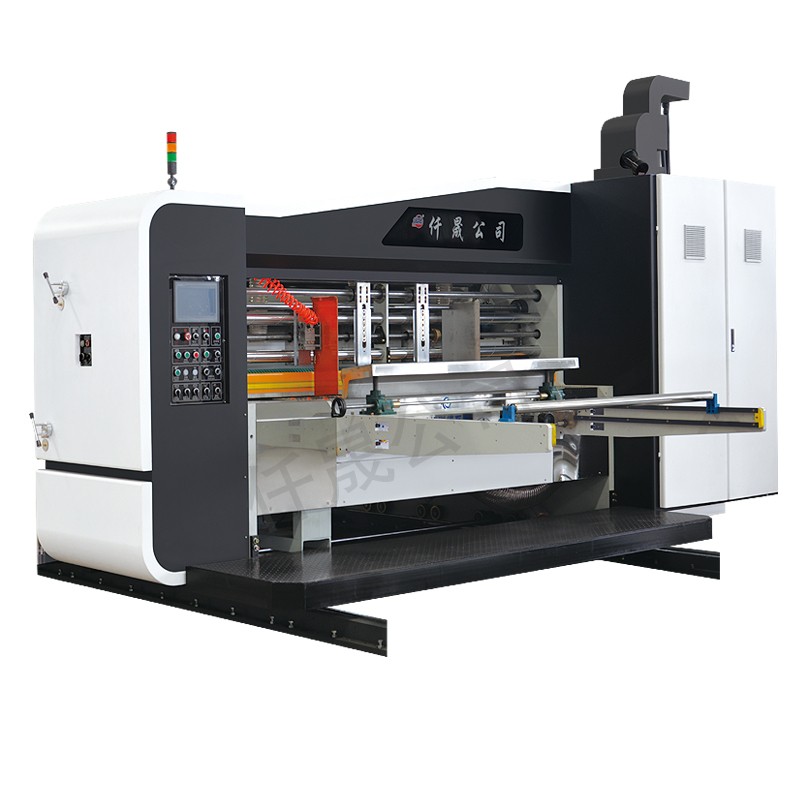

◆ Servo motor independent drive, no gear clearance wear, long life, high precision.

◆ Vacuum adsorption leading edge feeding, frequency control of air volume, feeding stability, precision.

◆ Extended type feeding system, according to the length of the cardboard, determine the feeding stroke size, improve the feeding accuracy.

◆ Non pressure feeding system, avoid damage to the cardboard , ensure the compressive strength of the original cardboard.

◆ The whole machine automatic zero system, storage common orders, quick order replacement, easy to operate.

◆ Wide tvpe dust removal device, in addition to electrostatic brush, can remove paper dust on the board surface, improve the quality of printing.

◆ Left, right baffle, rear pallets are computer controlled, precision guide mechanism, smooth displacement, with side beat function.

◆ Full vacum adsorption, with ceremic feeding wheel transfer tysterm.

◆ Frequency conversion adjustment adsorption air, also according to the length of the cardboard automatically adjust the damper switch.

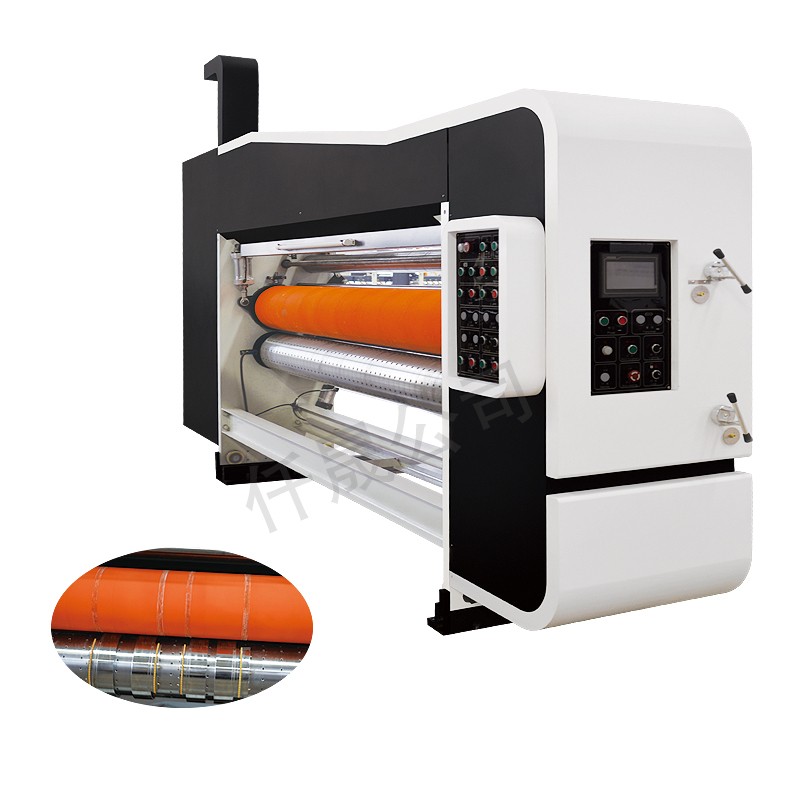

◆ Closed doctor blade with ceramic anilox roller, high precision printing, doctor blade force uniform simple adjustment and maintenance.

◆ Pneumatic double diaphragm pump, quick cleaning function, ink supply, stable circulation, simple operation and maintenance.

◆ Quick replacement of rubber roller, anilox roller device,wth fast replacement of support.

◆ Tilting correction roller, the tilting error of the print plate can be quickly corrected on the plate roller, hanging plate is convenient and fast.

◆ Momory Location Function, automatic reset system.

◆ Double system of touch screen and electric button control, can completed at the box, phase, the axis moves.

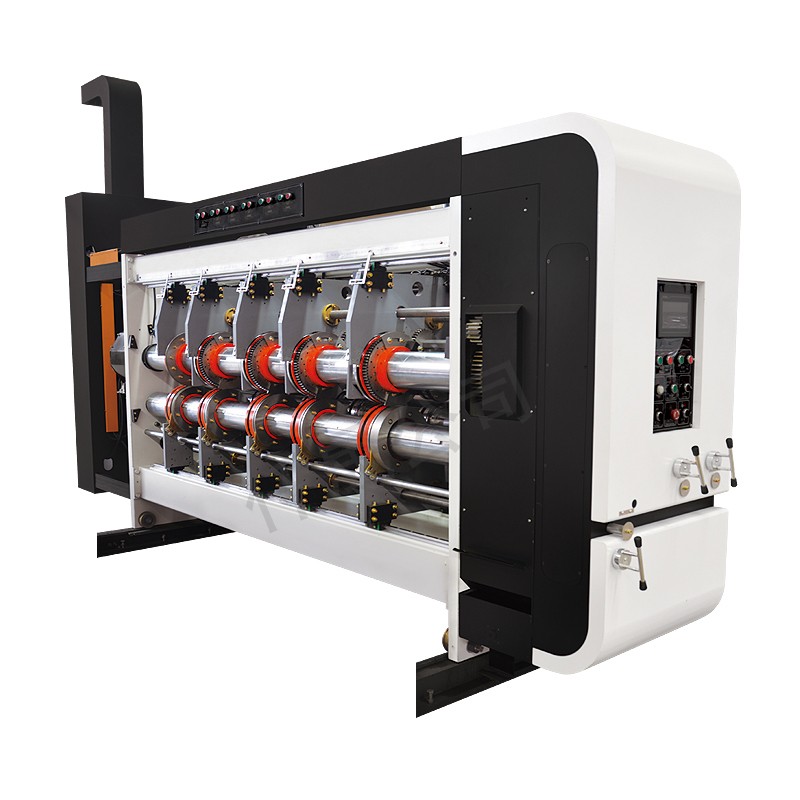

◆ Configuration pressure quick adjust mechanism, and can self-locking, ensure the plate and roller long-term precision, slow down damage to cardboard when groove.

◆ Up-groove wheel parcel the quality polyurethane,, avoid cardboard hardness undermine.

◆ Settings synchronous manner unified action by the axis moves, let up and down groove wheel, up and down slot knife plate, oriented wheel adjust synchronous; Automatic wear-resistant mechanism, ensure long-term correct when moves and raise durability.

◆ Groove wheel and roller, slot wheel and roller use quality alloy steel products, surface grinding and hard chrome plating; to move their respective balance.

◆ Slotter knife use quality alloy steel products, the width is 7mm.

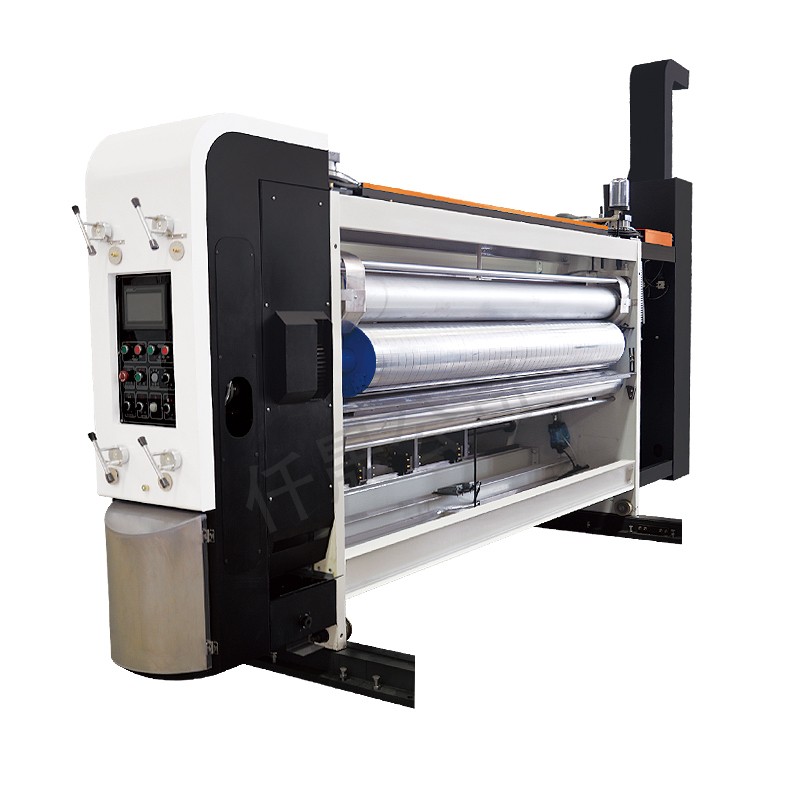

◆ Independent servo drive, avoid impact of die cutting on the printing effect.

◆ Equipped with imported fast changing polyurethane rubber, easy to replace, with a one-way clutch for linear speed compensation function, can ensure that the rubber wear out of the die-cut cardboard is exactly the same.

◆ When working, the die cutting roller mechanical screw about automatic transverse movement (plus or minus 20mm), so that the cutting knife does not repeat, prolong the service life of felt sleeve.

◆ The gap between rubber roll and die cutting roll is controlled by pneumatic control. Normally, the rubber roll drops to the working position when paper feeding, and the rubber roll automatically rises when paper feeding stops.

◆ Rubber correction mechanism, increase the use number of rubber, reduce consumption.

◆ The bottom of the die cutting equipped with a waste paper conveying device, the die cutting paper scraps to the outside of the equipment, convenient cleaning.

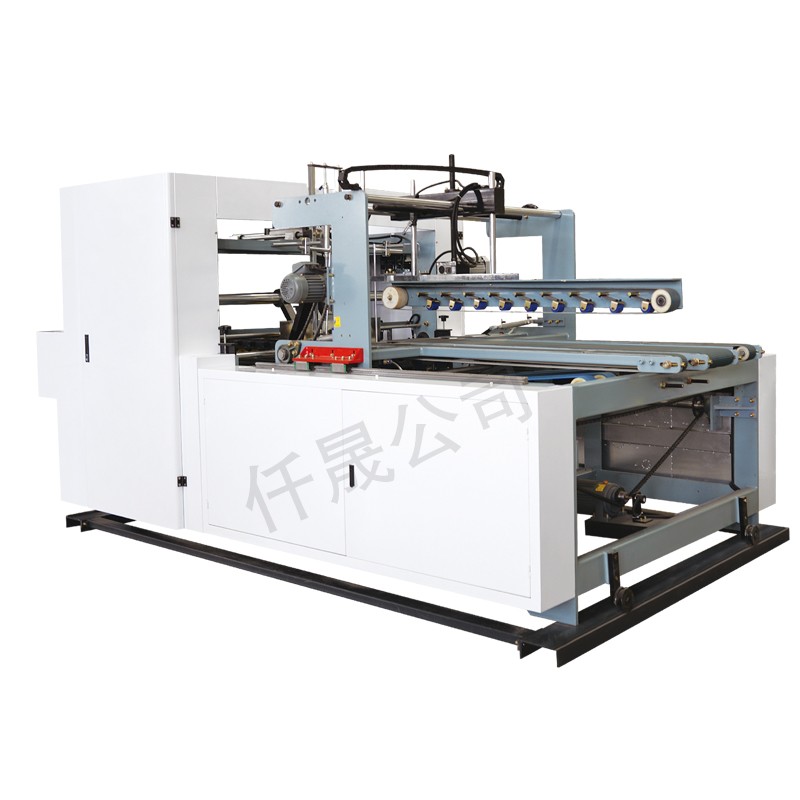

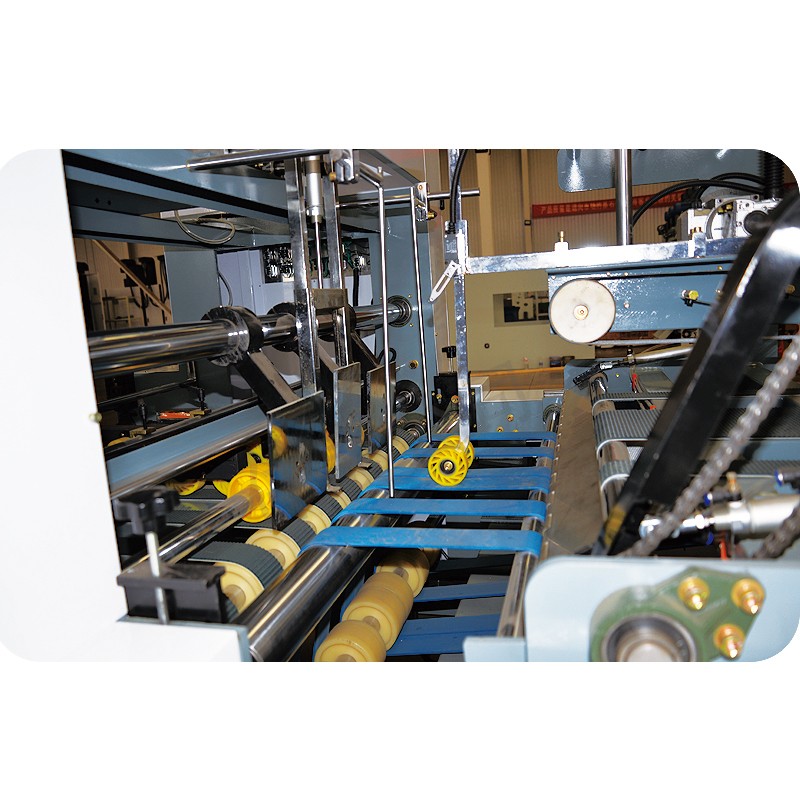

Glue system with constant temperature

CNC control sheet cleaning system

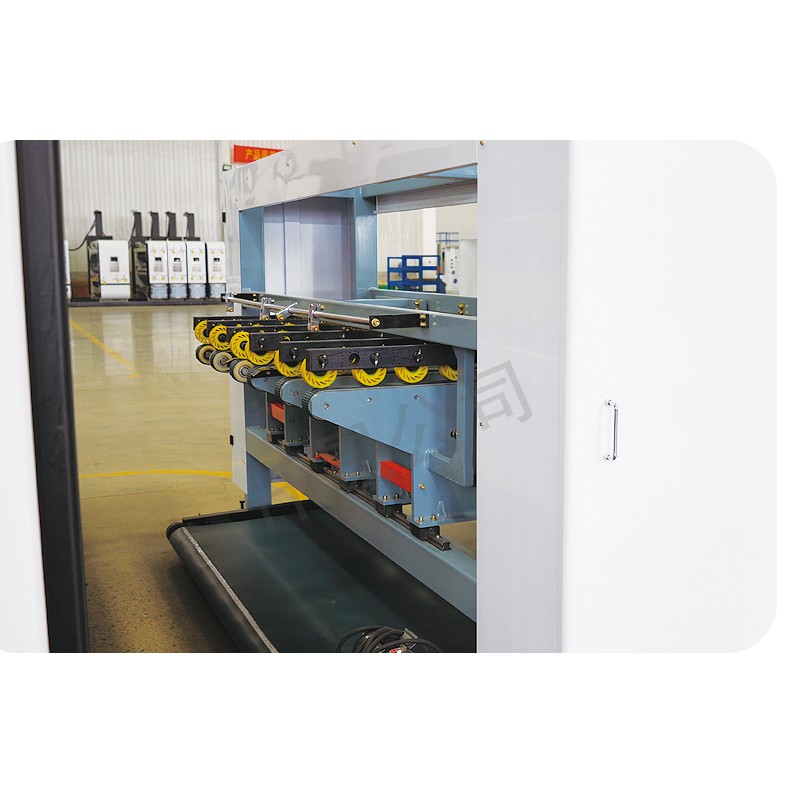

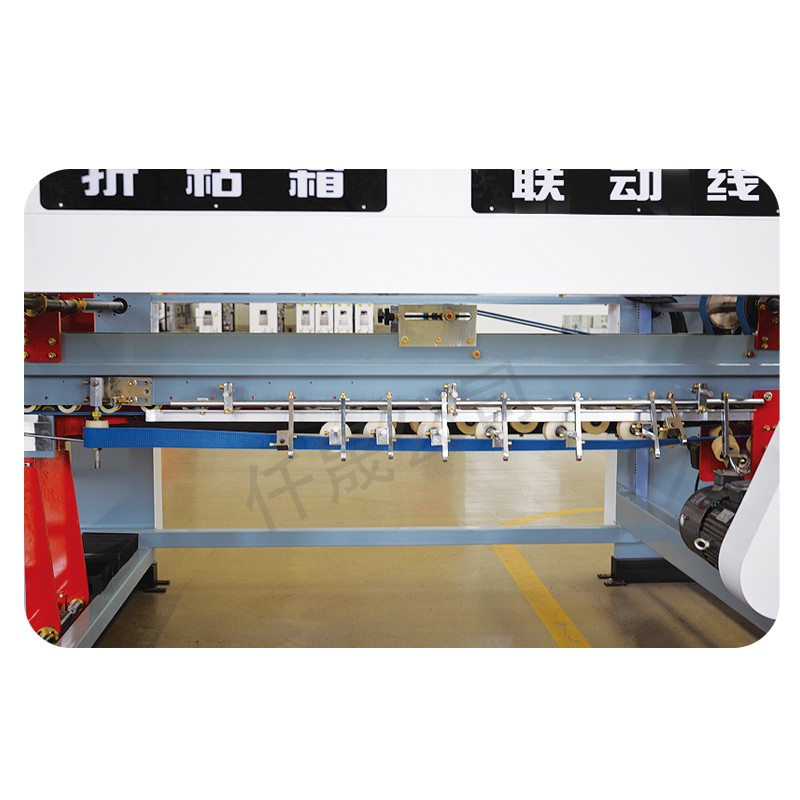

Precision deflection wheel system to ensure feeding register vacuum transportation when folding.

High rigidity beam Linear guideway Lateral moving system.

prolong the time of cardboard correction, stable the gluing

Suitable use: the binding of large objects such as cartons, pit paper, cardboard, newspapers, books

and periodicals, and the binding of clothing are widely controlled by machinery (or electronics), with stable working performance, solid and durable body, and simple maintenance.
