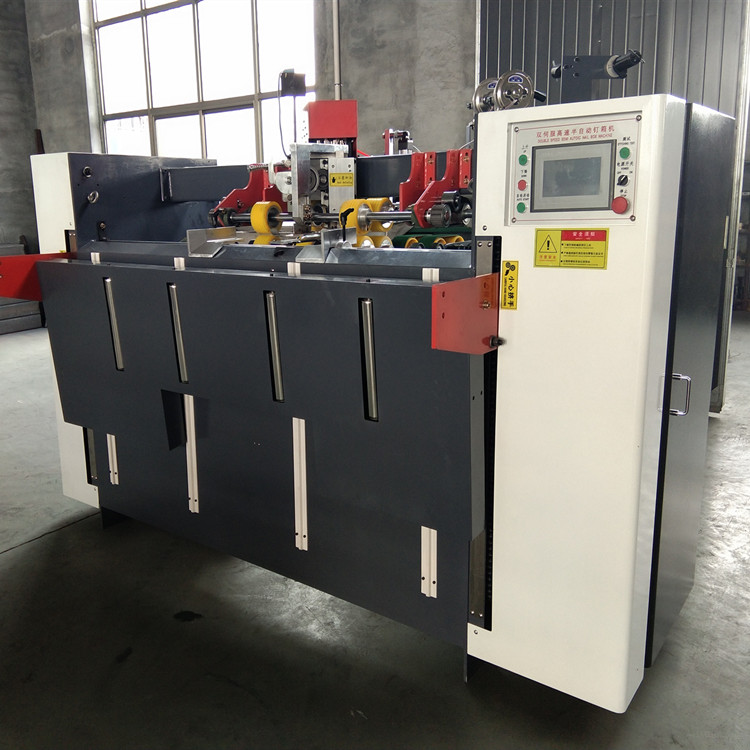

Fuji dual servo drive from Japan ensures high precision. The mechanical transmission is reduced, effectively lowering the mechanical failure rate. The head reducer of the machine adopts the brand of Liming from Taiwan. The workbench reducer adopts the Hongsheng brand. The Delta touch screen operation in Taiwan allows for convenient and quick changes in parameters such as box cover, box height, number of nails, nail spacing, packaging, and rear baffle.

The entire control system adopts the plc control system of Delta from Taiwan. The rear electric baffle, driven by a stepping motor, features precise dimensions and is convenient and fast. The gap of the paper pressing rubber wheel is electrically adjusted. The proximity switch adopts the Omron brand of Japan. The intermediate relay adopts the Schneider brand of France. The cylinder and solenoid valve adopt the brand of Taiwan Airtac. The bottom mold and blades are made of Japanese alloy tungsten steel [wear-resistant]. The entire set of nail heads is made of Japanese mold steel and precisely processed by computerized milling. Single nails, double nails and reinforced nails are available [please specify in advance when placing an order], which can meet the different requirements of various customers for different types of nails.

It can be nailed in three, five or seven layers. [Please specify in advance when placing an order.] Changing the size of the carton, such as the lid, height, number of nails, and nail spacing, can be completed in just one minute, greatly saving time and being easy to operate. The front paper feeding section automatically rises and falls. The paper feeding platform is equipped with a photoelectric sensing device to maintain the optimal paper feeding height. The rear end is equipped with an automatic counting function. The finished product boxes can be sent to the end of the conveying machinery in the set quantity, which is convenient for packaging and bundling. The mechanical speed is 500 nails per minute, and the nail spacing can be adjusted freely from 30 to 120. The effective lifting height of the workbench is 900mm and the machine weighs 1.

main technical parameters

Max length (A+B)*2  2200 mm

Min length(A+B)*2  740mm

Max width(C+D+C)  1000mm

Min width(C+D+C)  350mm

Height of feeder  900mm

Host machine  Length【2850mm】 Width【2200mm】 Height【2000mm】

Complete machine 3500mm*2600mm*2000mm

Mechanical speed, 500 nails per minute

Machine weight [2T]
